RMC Concrete Batching Plant International
|Payment Type:||L/C,T/T,D/P,Paypal,Money Gram,Western Union|
|Terms of Trade:||FOB,CFR,CIF,EXW,FCA,CPT,CIP|
|Min. Order:||1 Set/Sets|
|Delivery Time:||25 Days|
|Packaging:||Standard packing containers concrete batch plant 40' HQ or as you need|
|Place of Origin:||China|
|Supply Ability:||According to your request|
Model No.: HZS60
Type: Concrete Mixing Plant
Shotcrete Type: Wet
Machining Process: Hydraulic
Structure: Cylinder Type
Feeding Height: 1390mm
Vibrating Amplitude: 2.2mm
Certification: ISO9001: 2000, CE
Warranty: 12 Months
Max. Output Capacity: 25m3/h-180m3/h
Mixer Model: JS500-JS3000
Batching Plant Model: PL800-PLD4000
Discharging Height: 3800MM
Working Cycle Time: 60S
Application: Water Conservancy,the Electric Power,the Railroad Etc.
Controlling System: Standard System
Optional Spare Parts: Bolt Cement Silo And Screw Conveyor
RMC Concrete Batching Plant International
HZS series Concrete Batching Plant belongs to compulsory and efficiency equipment. It includes JS concrete mixer, PLD batching machine,cement silo,conveying system and control system.And also has the characteristic of mixing well, high productivity, highly automated, high flexibility, convenient operation, and good stability.Concrete mixing plant concrete mixing plant can be widely used in construction projects like buildings, roads, bridges, high way roads, docks, airport, water projects, hydropower station, etc. They can also be used in fibre reinforced concrete unit factories and used as commercial cyclone cement concrete mixing plant to sell high quality concrete to different buyers.

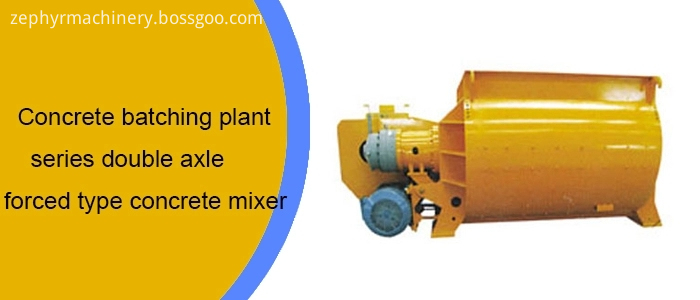

1.Adopting horizontal twin-shaft compulsory mixer
2.The aggregate is measured cumulatively by electric scale
3.Water and additive is measured accurately under the control of the computer
4.The whole machine is controlled by computer which makes operation easy
5.The main electric components are from famous brand.
1.The whole mixer body is bored by the boring machine, to keep the concentric degree of the mixing axle.
2.The rubber sealing gasket of the axle end seal is installed at side of the mixing arm, normally it can mixing 200 thousand time without mortar leakage.
3.The lubrication and seal of the axle end adopt the electrical concentrated oil pump to lubricate automatically.
1.The controller of the machine is made by Shandong Boshuo--Shandong measurement standardized expert unit.
2.Cylinder,Solenoid Valve and sensor is the famous brand items inner country.
3.The discharge door is the patent design,to the utmost extent to reduce the stock phenomenon of the door by sand.
1.To adopt the good seamless steel pipe,circular weight is balanceable.
2.The blade is formed in one time without any welded point,to reduce the compress degree when transporting the materials.
3.To adopt the superior reducer,owning the features of large turning torque, and low noise and so on.
4.To connect by the universal coupling,more ease to install.

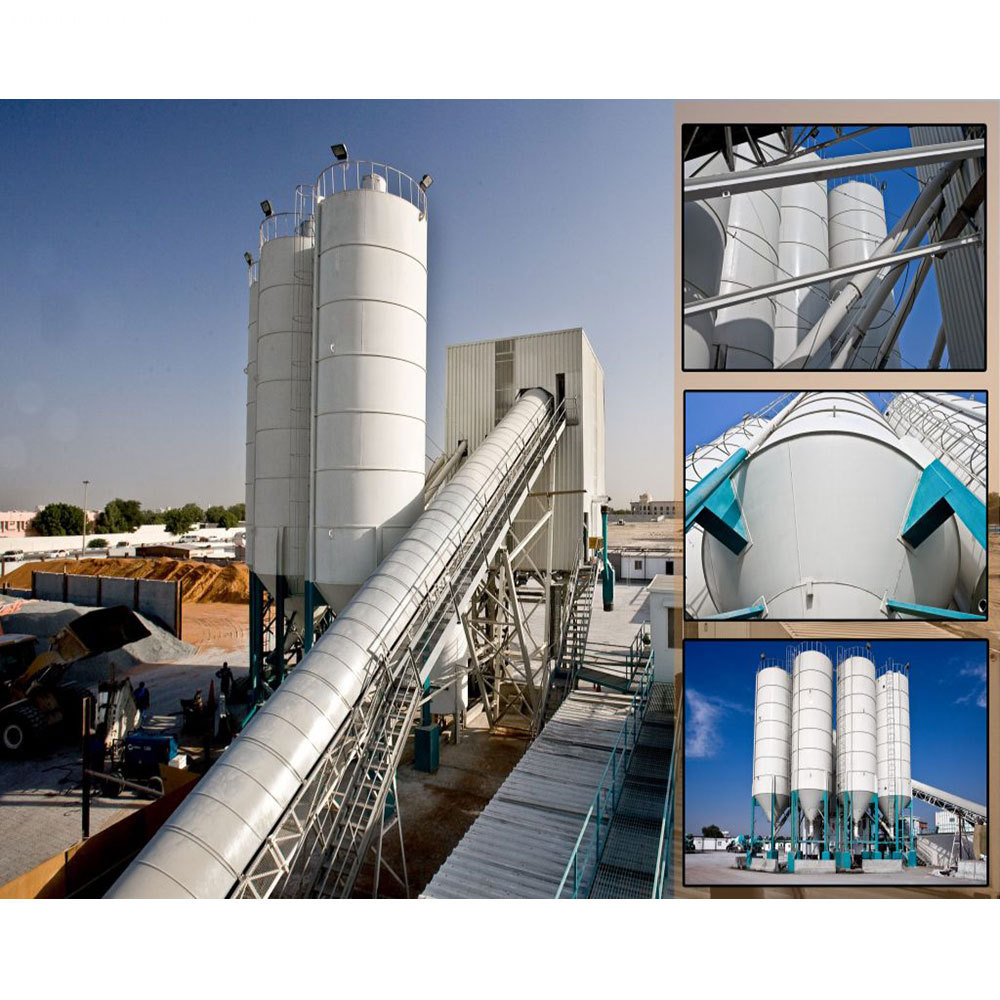

1.The cement silo is assembled by the below components: silo body, ladders,guardrail,charging pipe, dust collector,pressure sage valve,hi-low metering, discharging valve.
2.The cement silo is the cylindrical structure,four round legs support the bottom of the silo,the whole cement silo is the steel structure formed by welding, the dust collector and pressure safe valve is installed on top silo.
1.The system own the function like self-lock and mutual locking, to make sure the system.
2.There are two kinds of control methods: manual / automatic, the concrete production can be completed independently.
3.The two control modes can be converted to each other by switching switches.
Technical Parameters of Belt Conveyor Concrete Mixing Plant
Model HZS60 HZS90 HZS120 HZS150 HZS180 Discharging Capacity (L) 1000 1500 2000 2500 3000 Charging Capacity(L) 1600 2400 3200 4000 4800 Maximum Productivity(m³/h) 60 90 120 150 180 Charging Model belt conveyor belt conveyor belt conveyor belt conveyor belt conveyor Standard Discharging Height(m) 4.2 4.2 3.8~4.5 4.5 4.5 Number of Species of Aggregate 3~4 4 4 4 4 Maximum Aggregate Size(mm) ≤80mm ≤80mm ≤120mm ≤150mm ≤150mm Cement/Powder Silo Capacity(set) 3×100T 4×100T 4×100T or 200T 4×200T 4×200T Mixing Cycle Time(s) 60 60 60 30 30 Total Installed Capacity(kw) 145 198.06 210 230 288
Packaging&Shipping of Our Products
Harbin Zephyr Trading Co.,Ltd locates in the north of China, province Heilongjiang,city Harbin.This is an international trading company mainly exports large road machinery such as:asphalt mixing plant,concrete mixing plant,crushing and screening production line and Excavator,Loader,Bulldozer,Truck crane ,Dump truck ,Concrete Mixer truck and so on...
As one of the first professional supplier of asphalt mixing plant and concrete mixing plant in China,we have always given attention to maintaining our higher level quality control and service , and we have received the ISO9001,CE,SGS etc certificates.Our equipment has exported to 35 countries,including:Russia,India,Bangladesh,Ghana etc.
If you have any inquiry about the concrete mixing plant or constructions machinery,please fell free to contact us,We are always warmly welcome you to come and look forward to our meeting!
What 's your after-sale service?
1, 12 months warranty from products departure. Enough spare parts and quick-wear parts sent together.
2, Onsite installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well.
3, Prompt reply in case of any problems.
What`s the service life of your machinery?
Usually 5-10 years under good maintenance.
How soon can you reply me?
In 1 working day, detailed quotation and program design will be offered.
What`s your delivery time?
5 days for single machines, 15 days for plants.
What are your payment terms?
T/T, L/C, Paypal, Credit card, Western union, Moneygram are all ok.
Can you customize by my specialized request?
Yes, we can.Contact Us
If interested in our products, please contact with us without hesitation.
We are waiting for your message. ↓↓↓
Harbin Zephyr Trading Co.,Ltd locates in the north of China, province Heilongjiang,city Harbin.This is an international trading company mainly exports large road machinery such as:asphalt mixing plant,concrete mixing plant,crushing and screening production line and so on...
As one of the first professional supplier of asphalt mixing plant and concrete mixing plant in China,we have always given attention to maintaining our higher level quality control and service , and we have reveived the ISO9001,CE,SGS etc certificates.At present the products of our company have covered and exported to 35 countries, including Europe, South America, Africa and Southeast Asian countries and regions.
Our compnay will initiate the second phase of our development strategy. Our company regards [reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. If you have any inquiry about the concrete mixing plant or constructions machinery,please fell free to contact us,We are always warmly welcome potential buyers to come and look forward to our meeting!
