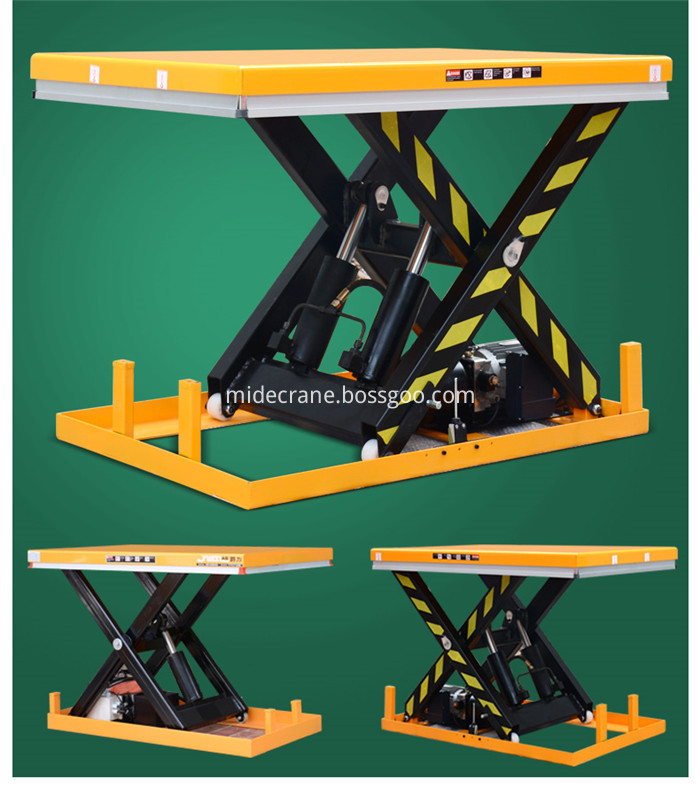

small electric hydraulic mini scissor lift table

  • small electric hydraulic mini scissor lift table
  • small electric hydraulic mini scissor lift table
  • small electric hydraulic mini scissor lift table
  • small electric hydraulic mini scissor lift table

small electric hydraulic mini scissor lift table

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB,CFR,CIF,EXW
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: As Customer Requirement
    Productivity: 300sets/month
    Brand: Mide
    Transportation: Ocean,Land,Air
    Place of Origin: Henan
    Supply Ability: 300sets/month
    Certificate: CE ISO
    HS Code: 8428909090
    Port: Qingdao,Shanghai,Ningbo

Basic Info

Model No.: SJG

Product Description

Small electric hydraulic mini scissor lift table is one kind of hydraulic stationary lift table which is an important lifting equipment at the workshop, ware-shop and factory etc. It is one of professional high-altitude operation equipment. Hydraulic scissor lift table can divide into mobile scissor lift table and stationary scissor lift table. with small table or with big platform, it can be installed on the ground or in the pit. We have different capacity for electric lift table, with different lifting height, and different table finish. Stationary lift table with heavy duty design, high quality pump, with overload protection.

C 1


Advantage:

1. It is dealt with shot blasting and stoving varnish, high anti-corrosion function.

2. High quality pump station make the scissor lift table lifts and falls very stably.

3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span.

4. Removable lifting eye can help to lift the table and install.

5. Heavy duty cylinders with drainage system and Check Valve to stop the scissor lift table lowering in the case of hose burst.

6. Pressure relief valve prevent overload operation; Flow Control Valve make descent speed adjustable.

7. Brief structure make it much easier to operate and maintain.


Product Image


Safety Precautions:

1. Explosion-proof valves 2. Spillover valve

3. Emergency decline valve 4. Overload protection locking device.

5. Automatic Safety sensor:stop when come across barriers.

2 9


Three scissor lift table

item no. Loading capacity(kg) min. height(mm) Max. height(mm)

table size(mm)

L*W

voltage(v)
DH1000 1000 470 3000 1700*1200 380/220
DH2000 2000 500 3000 1700*1000 380/220
DH4000 4000 500 3000 1700*1000 380/220
Single scissor lift table
Scissor lift table

Stationary Scissor Lift Platform

Double scissor lift table



Fixed Hydraulic Mini Scissor Lift Table

item no. Loading capacity(kg) min. height(mm) Max. height(mm)

table size(mm)

L*W

voltage(v)
DG1000 1000 305 1780 1300*820 380/220
DG2000 2000 400 2050 1300*850 380/220
DG4000 4000 400 2050 1700*1200 380/220
More images

Three scissor lift table

Model 1 6

Mini Electric Scissor Lift Platform

Production Flow

Fixed hydraulic mini scissor lift table

Customized design and requirements are welcome

2 3

stationary lift platform

small electric hydraulic mini scissor lift table
Related product

Stationary Hydraulic scissor lift table

FAQ

1.Delivery time

Within 10- 15 working days after we receive the order.

2. Payment terms

T/T, L/C, Western Union, PayPal, other kinds, pls contact with us.

3. MOQ

Generally speaking, the MOQ is 1 set, Different products have different MOQ, pls contact with us.

4. Custom-made

 Our company is located in the beautiful hero city-Nanchang. With its own supporting process of machining, milling, planing, grinding etc. We own R&D design team, having complete quality assurance system and strict management system. Our mission is to think what the customer thinking, do what the customer urgently want. Quality makes the brand and integrity weaves the future.
